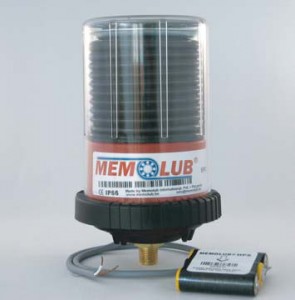

MEMOLUB EPC
MEMOLUB ® EPC is the automatic lubricating battery powered, run the preset program to control the lubrication cycle and jet frequency,
MEMOLUB ® EPC on / off function is controlled by an external switch,
MEMOLUB ® EPC three models:
Standard:MEMOLUB EPC 120
Mega:MEMOLUB EPC 240
Giga:MEMOLUB EPC 480
3, product features:
The use of medium: oil or grease (various models of NLGI#2 and within the oil)
Storage capacity: 120cc 240cc 480cc (replaceable)
Each output oil: 0.635cc
Every action number: 0.5, 1, 1.5, 2, 4, 12, 24
Working pressure: 350 psi (25 Bar)
Oil output type: single point or multipoint (1 - 12 lubrication points)
Operating temperature: 15 ℃ -50 ℃
Power supply: 3 1.5V 5 alkaline batteries (replaceable)
Control switch: external switch for controlling the power supply
Install the screw thread: 1/4NPT (M) -1/8NPT (M) available
Mounting distance: single point 12 meters
|
